Stock (OEM) Replacement Wheels or Rims for Cadillac XTS 2013 - 2019
Below is our selection of factory (OEM) and (OE) replica XTS Wheels/Rims. Please note: The terms wheels and rims are interchangeable. Once you find the picture of the XTS wheel you need, simply select the add to cart button below the picture. Our XTS stock (OEM) rims are reconditioned to factory specifications, or if available, brand new OE replica wheels, manufactured to factory specifications in ISO-9000 certified facilities. Learn more "About our Wheels" for additional information regarding our XTS OEM wheels/rims. Please ensure you are ordering the correct rim(s) for your vehicle. Since we do not have access to customer vehicles, it is up to the customer to confirm the product being ordered is appropriate for their vehicle. We offer a 100% Satisfaction Guarantee on all XTS wheel orders. We also offer FREE SHIPPING on all wheel orders shipped within the contiguous U.S. You may order your wheel(s) securely online or call us Toll Free, (877) 482-4283 to place an order.

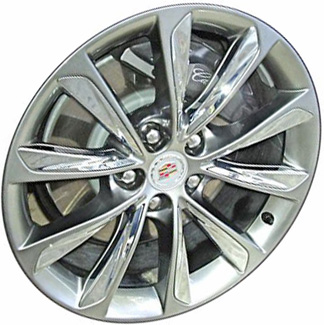

ALY4697U20.LS1 Cadillac XTS Wheel/Rim Hyper Silver #22894669
Make/Model/Year:
Cadillac XTS 2013-2019
Product Specifications:
Product ID: ALY4697U20.LS1
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 10 Spoke
Finish: Powder Coat Hyper Silver
Size: 19x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Option Code: RT9, Q6M, Q7W
Indents: 22785491
OE Part Number: 22894669, 23372451
Notes: Center Cap and Tire Pressure Monitor Are NOT Included
Note: This wheel utilizes plastic screw on chrome inserts. These inserts are NOT included and must be retained by the customer for full restoration.

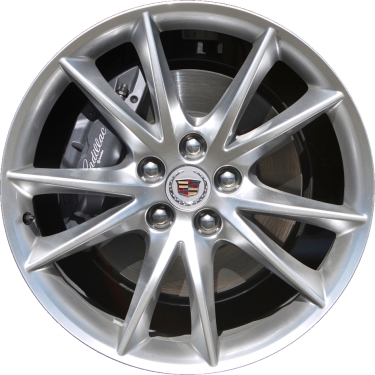

ALY4698 Cadillac XTS Wheel/Rim Hyper Silver #22887107
Make/Model/Year:
Cadillac XTS 2013-2019
Product Specifications:
Product ID: ALY4698
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 10 Spoke
Finish: Powder Coat Hyper Silver
Size: 20x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Option Code: RQA
Indents: AAX4, 22785490
OE Part Number: 22887107
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

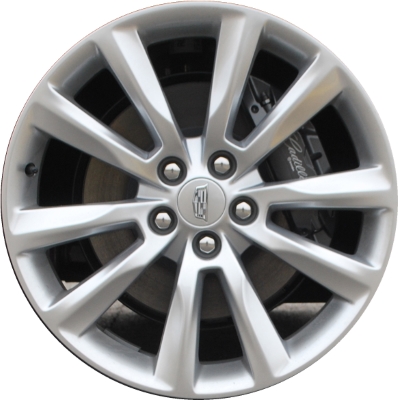

ALY4795 Cadillac XTS Wheel/Rim Silver Painted #23491828
Make/Model/Year:
Cadillac XTS 2017-2019
Product Specifications:
Product ID: ALY4795
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 10 Spoke
Finish: Powder Coat Silver
Size: 20x8.5
Lugs: 5
Bolt Pattern: 120mm
Option Code: Q7F
OE Part Number: 23491828
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

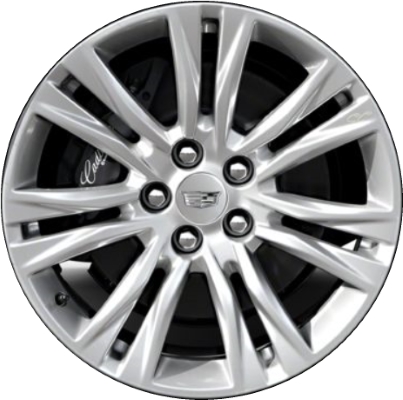

ALY4818U77 Cadillac XTS Wheel/Rim Hyper Silver #84065983
Make/Model/Year:
Cadillac XTS 2018-2019
Product Specifications:
Product ID: ALY4818U77
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 7 Double Spoke
Finish: Powder Coat Hyper Silver
Size: 19x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Option Code: RUI
Indents: 84065983
OE Part Number: 23372450
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

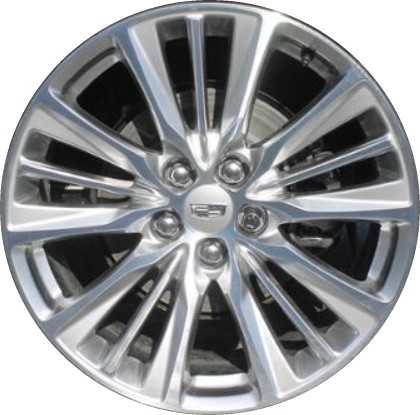

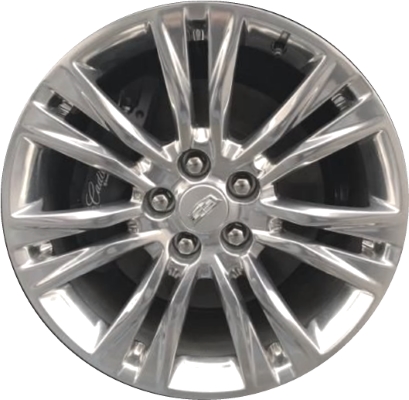

ALY4818U80/4819 Cadillac XTS Wheel/Rim Polished #23372449
Make/Model/Year:
Cadillac XTS 2018-2019
Product Specifications:
Product ID: ALY4818U80/4819
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 7 Double Spoke
Finish: Polished
Size: 19x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Option Code: Q94
Indents: 84065983
OE Part Number: 23372449
Notes: Center Cap and Tire Pressure Monitor Are NOT Included
ALY4816 Cadillac XTS Wheel/Rim Silver Machined #23372452
Make/Model/Year:
Cadillac XTS 2018-2019
Product Specifications:
Product ID: ALY4816
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 15 Spoke
Finish: Silver Machined
Size: 20x8.5
Lugs: 5
Bolt Pattern: 120mm
Option Code: Q7J
OE Part Number: 23372452
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

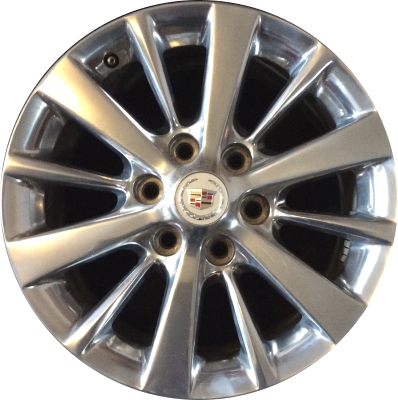

ALY4695 Cadillac XTS Hearse, Limousine Wheel/Rim Polished #20989562
Make/Model/Year:
Cadillac XTS 2013-2019
Product Specifications:
Product ID: ALY4695
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 12 Spoke
Finish: Polished
Size: 18x8
Lugs: 6
Bolt Pattern: 120mm
Offset: 50mm
Option Code: Hearse, Limousine
Indents: 20989868
OE Part Number: 20989562
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

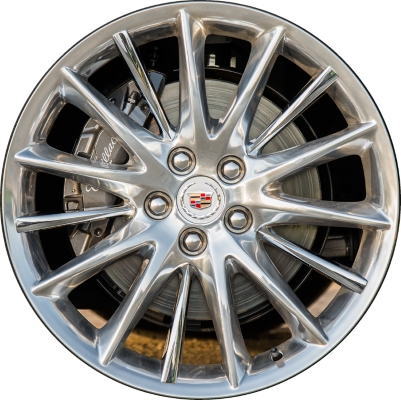

ALY4699 Cadillac XTS Wheel/Rim Polished #22887108
Make/Model/Year:
Cadillac XTS 2013-2019
Product Specifications:
Product ID: ALY4699
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 15 Spoke
Finish: Polished
Size: 20x8.5
Lugs: 5
Bolt Pattern: 120mm
Option Code: RQ9
Indents: AAX5, 22785490
OE Part Number: 22887108
Notes: Center Cap and Tire Pressure Monitor Are NOT Included
Note: This wheel utilizes plastic screw on chrome inserts. These inserts are NOT included and must be retained by the customer for full restoration.
ALY4729U77 Cadillac XTS Wheel/Rim Hyper Silver #22926094
Make/Model/Year:
Cadillac XTS 2015-2017
Product Specifications:
Product ID: ALY4729U77
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 10 Spoke
Finish: Powder Coat Hyper Silver
Size: 19x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Indents: 22926094
OE Part Number: Not Yet Known
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

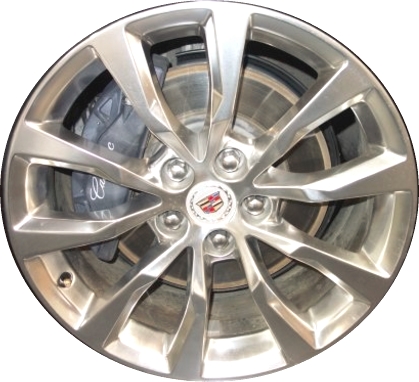

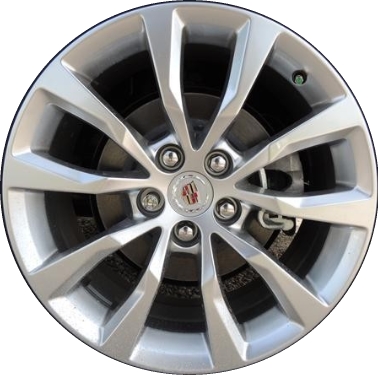

ALY4729U80/4775 Cadillac XTS Wheel/Rim Polished #22917412
Make/Model/Year:
Cadillac XTS 2015-2017
Product Specifications:
Product ID: ALY4729U80/4775
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 10 Spoke
Finish: Polished
Size: 19x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Option Code: RT9
Indents: 22926094
OE Part Number: 22917412
Notes: Center Cap and Tire Pressure Monitor Are NOT Included

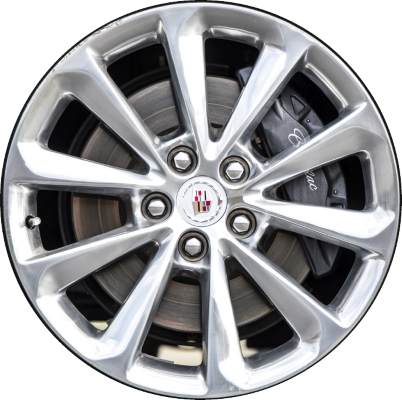

ALY4696/4773 Cadillac XTS Wheel/Rim Polished #22783689
Make/Model/Year:
Cadillac XTS 2013-2016
Product Specifications:
Product ID: ALY4696/4773
Product: Wheel/Rim (Single)
Material: Aluminum
Style: 10 Spoke
Finish: Polished
Size: 19x8.5
Lugs: 5
Bolt Pattern: 120mm
Offset: 39mm
Option Code: Q8R, RT9
Indents: 22785491
OE Part Number: 22783689
Notes: Center Cap and Tire Pressure Monitor Are NOT Included
